UML

UML class diagrams describe the structure (but not the behavior) of an OOP solution. These are possibly the most often used diagrams in the industry and an indispensable tool for an OO programmer.

An example class diagram:

The basic UML notations used to represent a class:

A Table class shown in UML notation:

class Table{

    Integer number;
    Chair[] chairs = null;

    Integer getNumber(){
        //...
    }

    void setNumber(Integer n){
        //...
    }
}

class Table:

  def __init__(self):
    self.number = 0
    self.chairs = []

  def get_number(self):
    # ...

  def set_number(self, n):
    # ...

The 'Operations' compartment and/or the 'Attributes' compartment may be omitted if such details are not important for the task at hand. 'Attributes' always appear above the 'Operations' compartment. All operations should be in one compartment rather than each operation in a separate compartment. Same goes for attributes.

The visibility of attributes and operations is used to indicate the level of access allowed for each attribute or operation. The types of visibility and their exact meanings depend on the programming language used. Here are some common visibilities and how they are indicated in a class diagram:

• + : public
• - : private
• # : protected
• ~ : package private

visibility	Java	Python
- private	private	at least two leading underscores (and at most one trailing underscores) in the name
# protected	protected	one leading underscore in the name
+ public	public	all other cases
~ package private	default visibility	not applicable

Table class with visibilities shown:

You should use a solid line to show an association between two classes.

This example shows an association between the Admin class and the Student class:

You should use arrow heads to indicate the navigability of an association.

Logic is aware of Minefield, but Minefield is not aware of Logic

class Logic{
    Minefield minefield;
}

class Minefield{
    ...
}

class Logic:

  def __init__(self, minefield):
    self.minefield = minefield

  # ...


class Minefield:
  # ...

Here is an example of a bidirectional navigability; each class is aware of the other.

Navigability can be shown in class diagrams as well as object diagrams.

According to this object diagram the given Logic object is associated with and aware of two MineField objects.

Association Role labels are used to indicate the role played by the classes in the association.

This association represents a marriage between a Man object and a Woman object. The respective roles played by objects of these two classes are husband and wife.

Note how the variable names match closely with the association roles.

class Man{
    Woman wife;
}

class Woman{
    Man husband;
}

class Man:
  def __init__(self):
    self.wife = None # a Woman object

class Woman:
   def __init__(self):
     self.husband = None # a Man object

The role of Student objects in this association is charges (i.e. Admin is in charge of students)

class Admin{
    List<Student> charges;
}

class Admin:
  def __init__(self):
    self.charges = [] # list of Student objects

Association labels describe the meaning of the association. The arrow head indicates the direction in which the label is to be read.

In this example, the same association is described using two different labels.

• Diagram on the left: Admin class is associated with Student class because an Admin object uses a Student object.
• Diagram on the right: Admin class is associated with Student class because a Student object is used by an Admin object.

Commonly used multiplicities:

• 0..1 : optional, can be linked to 0 or 1 objects
• 1 : compulsory, must be linked to one object at all times.
• * : can be linked to 0 or more objects.
• n..m : the number of linked objects must be n to m inclusive

In the diagram below, an Admin object administers (in charge of) any number of students but a Student object must always be under the charge of exactly one Admin object

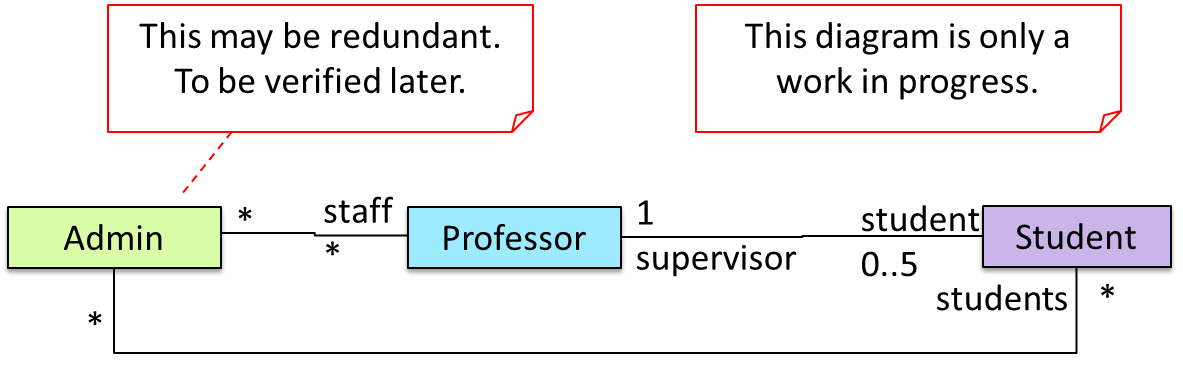

In the diagram below,

• Each student must be supervised by exactly one professor. i.e. There cannot be a student who doesn't have a supervisor or has multiple supervisors.
• A professor cannot supervise more than 5 students but can have no students to supervise.
• An admin can handle any number of professors and any number of students, including none.
• A professor/student can be handled by any number of admins, including none.

UML uses a dashed arrow to show dependencies.

Two examples of dependencies:

An association can be shown as an attribute instead of a line.

Association multiplicities and the default value too can be shown as part of the attribute using the following notation. Both are optional.

name: type [multiplicity] = default value

The diagram below depicts a multi-player Square Game being played on a board comprising of 100 squares. Each of the squares may be occupied with any number of pieces, each belonging to a certain player.

A Piece may or may not be on a Square. Note how that association can be replaced by an isOn attribute of the Piece class. The isOn attribute can either be null or hold a reference to a Square object, matching the 0..1 multiplicity of the association it replaces. The default value is null.

The association that a Board has 100 Squares can be shown in either of these two ways:

Show each association as either an attribute or a line but not both. A line is preferred is it is easier to spot.

Notation:

In the class diagram below, there are two enumerations in use:

In UML class diagrams, underlines denote class-level attributes and variables.

In the class below, totalStudents attribute and the getTotalStudents method are class-level.

UML uses a solid diamond symbol to denote composition.

Notation:

A Book consists of Chapter objects. When the Book object is destroyed, its Chapter objects are destroyed too.

UML uses a hollow diamond is used to indicate an aggregation.

Notation:

Example:

Aggregation vs Composition

The distinction between composition (◆) and aggregation (◇) is rather blurred. Martin Fowler’s famous book UML Distilled advocates omitting the aggregation symbol altogether because using it adds more confusion than clarity.

You can use a triangle and a solid line (not to be confused with an arrow) to indicate class inheritance.

Notation:

Examples: The Car class inherits from the Vehicle class. The Cat and Dog classes inherit from the Pet class.

An interface is shown similar to a class with an additional keyword <<interface>>. When a class implements an interface, it is shown similar to class inheritance except a dashed line is used instead of a solid line.

The AcademicStaff and the AdminStaff classes implement the SalariedStaff interface.

You can use italics or {abstract} (preferred) keyword to denote abstract classes/methods.

Example:

UML  activity diagrams (AD) can model workflows.  Flow charts is another type of diagrams that can model workflows. Activity diagrams are the UML equivalent of flow charts.

Unified Modeling Language (UML) is a graphical notation to describe various aspects of a software system. UML is the brainchild of three software modeling specialists James Rumbaugh, Grady Booch and Ivar Jacobson (also known as the Three Amigos). Each of them has developed their own notation for modeling software systems before joining force to create a unified modeling language (hence, the term ‘Unified’ in UML). UML is currently the de facto modeling notation used in the software industry.

An activity diagram (AD) captures an activity of actions and control flows that makes up the activity.

• An action is a single step in an activity. It is shown as a rectangle with rounded corners.
• A control flow shows the flow of control from one action to the next. It is shown by drawing a line with an arrow-head to show the direction of the flow.

Note the slight difference between the start node and the end node which represent the start and the end of the activity, respectively.

This activity diagram shows the action sequence of the activity a passenger rides the bus:

A branch node shows the start of alternate paths. Each control flow exiting a branch node has a guard condition : a boolean condition that should be true for execution to take that path. Only one of the guard condition can be true at any time.

A merge node shows the end of alternate paths.

Both branch nodes and merge nodes are diamond shapes. Guard conditions must be in square brackets.

The AD below shows alternate paths involved in the workflow of the activity shop for product:

Fork nodes indicate the start of parallelconcurrent flows of control.

Join nodes indicate the end of parallel paths.

Both have the same notation: a bar.

In a paths within a matching fork-join pairset of parallel paths, execution along all parallel paths should be complete before the execution can start on the outgoing control flow of the join.

In this activity diagram (from an online shop website) the actions User browsers products and System records browsing data happen in parallel. Both of them need to finish before the log out action can take place.

The rake notation is used to indicate that a part of the activity is given as a separate diagram.

Here is the AD for a game of ‘Snakes and Ladders’.

The rake symbol (in the Move piece action above) is used to show that the action is described in another subsidiary activity diagram elsewhere. That diagram is given below.

It is possible to partition an activity diagram to show who is doing which action. Such partitioned activity diagrams are sometime called swimlane diagrams.

A simple example of a swimlane diagram:
